Cold Extrusion Technology
Usage

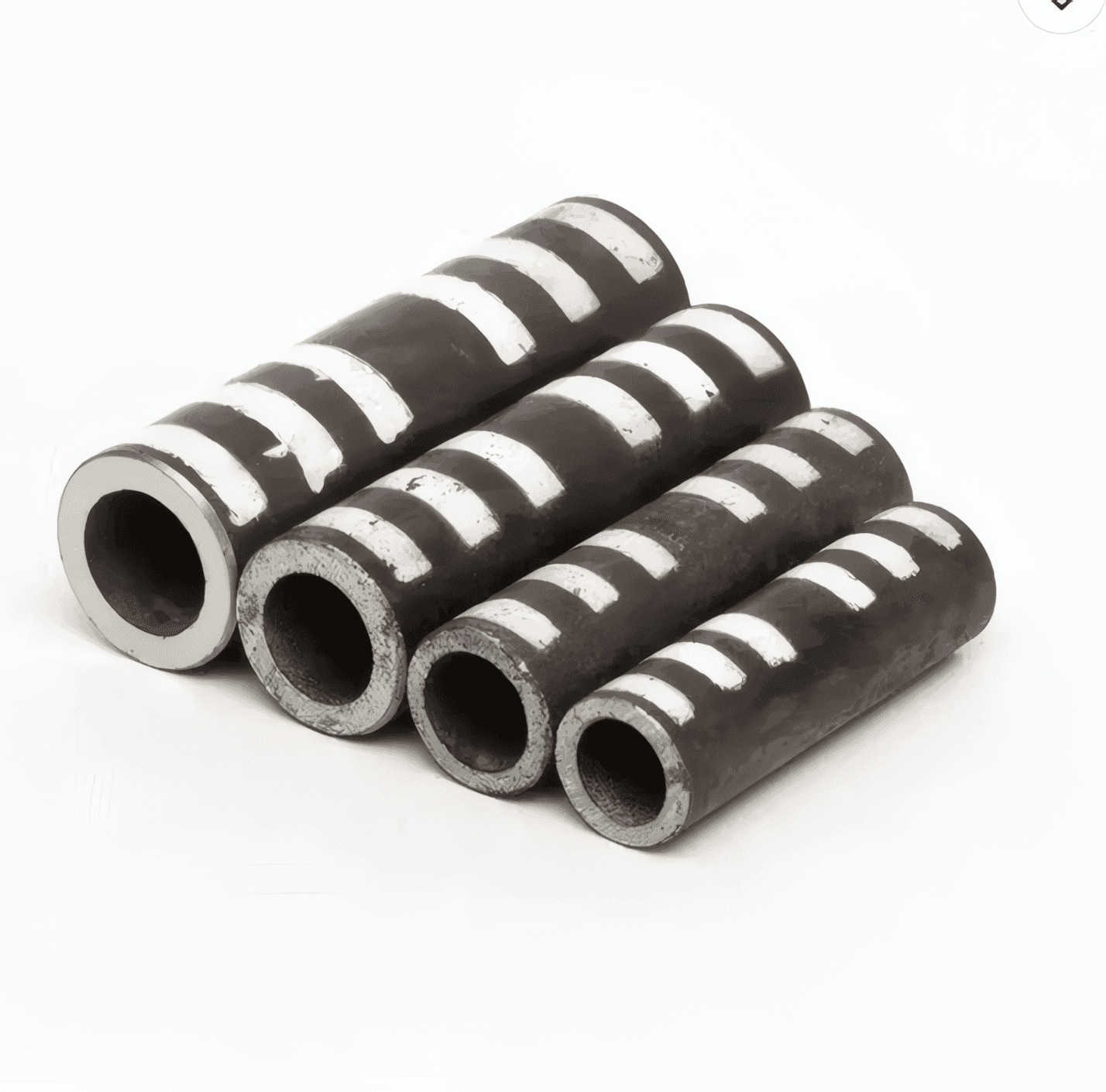

Cold Extrusion coupler is a kind of flexible connection designed to splice bars in location at site, the coupler is squeezed by the clamp to deform plastically and connect tightly with the rebars.
Usage
The test result of this kind of connection can guarantee the tensile strength of connection specimen is no less than 125% of the normal yield strength of rebar.
Rebar Size | OD (mm) | Wall THK. (mm) | Wall THK. tolerance | L ±2.0 (mm) | weight/pc (kg) |
|---|---|---|---|---|---|
Φ16 | 30±0.50 | 4.5 | (+0.54 /-0.45) | 100 | 0.280 |
Φ18 | 33±0.50 | 5.0 | (+0.60/-0.50) | 110 | .380 |
Φ20 | 36±0.50 | 5.5 | (+0.66 /-0.55) | 120 | .500 |
Φ22 | 40±0.50 | 6.0 | (+0.72 /-0.60) | 132 | 0.660 |
Φ25 | 45±0.50 | 7.0 | (+0.84 /-0.70) | 150 | 0.980 |
Φ28 | 50±0.50 | 8.0 | (+0.96 /-0.80) | 168 | 1.390 |
Φ32 | 56±0.56 | 9.0 | (+1.08 /-0.90) | 192 | 2.000 |
Φ36 | 63±0.63 | 10 | (+1.20 /-1.00) | 216 | 2.830 |
Φ40 | 70±0.70 | 11 | (+1.32 /-1.00) | 240 | 3.840 |
The material of the splicing coupler is constructional quality steel of No.20 steel
