Kuplör

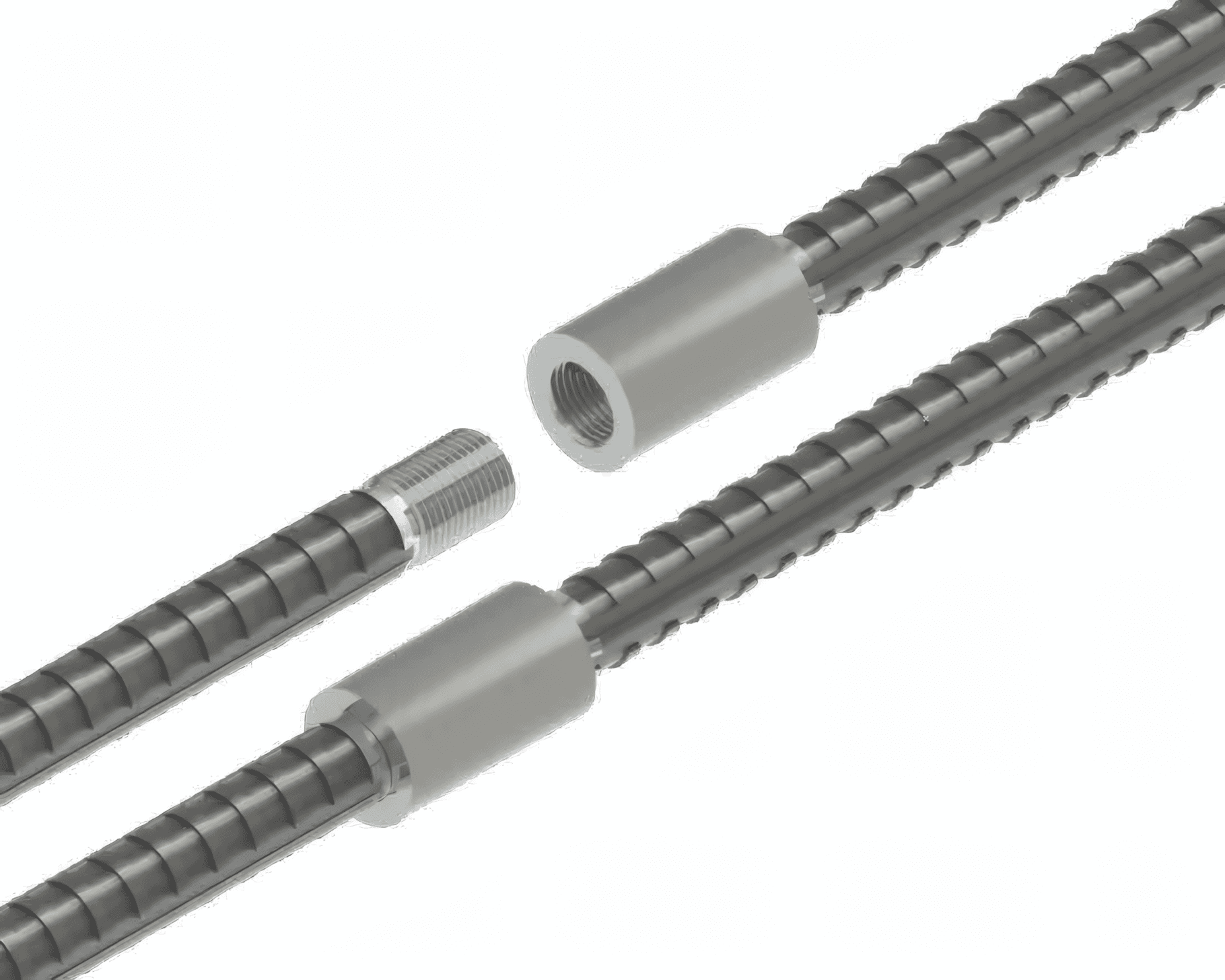

Rib Peeling Coupler
Rebar preparation
Peeling
Thread Rolling
Benefits
Cost effective alternative to lap splicing Reduces steel wastage . Parallel thread Rolling machine, can make the end of the steel straight thread forming,thread smooth standard, simple operation and reliable work. After use to the coolant device, the cooling effect is better. A kind of reinforced steel processing, rolling head only need to adjust once, so that the operating procedures greatly simplified.
Rebar Size | Thread (mm) | D ±0.5 (mm) | L ±0.5 (mm) | Pitch | Weight/pc (kg) |
|---|---|---|---|---|---|
Φ16 | M16.5 | 25 | 40 | 2.0 | 0.111 |
Φ18 | M18.5 | 28 | 45 | 2.5 | 0.136 |
Φ20 | M20.5 | 31 | 50 | 2.5 | 0.175 |
Φ22 | M22.5 | 33 | 55 | 2.5 | 0.203 |
Φ25 | M25.5 | 37 | 60 | 2.5 | 0.266 |
Φ28 | M28.6 | 41 | 70 | 3.0 | 0.375 |
Φ32 | M32.6 | 47 | 75 | 3.0 | 0.533 |
Φ36 | M36.5 | 54 | 85 | 3.0 | 0.828 |
40 | M40.2 | 59 | 95 | 3.0 | 1.085 |
The material of the splicing coupler is constructional quality steel of No.45 steel
