Taper Thread Coupler
Installation Sequence
Slice up the end of the rebar;
Make the rebar taper thread cut by taper thread machine.

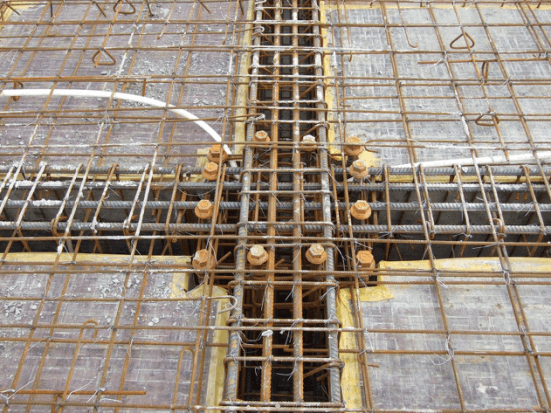

Connect together two taper thread end by one piece of taper thread coupler.
Benefits
Standard taper thread couplers are designed to splice the same diameter bars where one bar can be rotated and the bar is not restricted in its axial direction.
Rebar Size | Thread (mm) | Pitch | D ±0.5 (mm) | L ±1.0 (mm) | Taper Degree |
|---|---|---|---|---|---|
Φ16 | M19 | 2.0 | 25 | 50 | 6º |
Φ18 | M21 | 2.0 | 28 | 60 | 6º |
Φ20 | M23 | 2.0 | 30 | 70 | 6º |
Φ22 | M25 | 2.0 | 32 | 80 | 6º |
Φ25 | M28 | 2.0 | 35 | 85 | 6º |
Φ28 | M31 | 2.0 | 39 | 90 | 6º |
Φ32 | M36 | 2.0 | 44 | 100 | 6º |
Φ36 | M41 | 2.0 | 48 | 110 | 6º |
Φ40 | M45 | 2.0 | 52 | 120 | 6º |
The material of the splicing coupler is constructional quality steel of No.45 steel
